F23

Our 2023 car represented a significant upgrade of the vehicle, with new backplate design and new differential mount designs. This provided us with opportunities to improve upon and test out our vehicle before heading into competition. Other changes included a new electric gear shifting mechanism and buttons on the steering wheel to operate it.



F24 Slider (11)
F24 Slider (14)
F24 Slider (13)
F24 Slider (12)
F24 Slider (16)
F24 Slider (15)
F24 Slider (10)
previous arrow
next arrow
F24 Slider (11)
F24 Slider (14)
F24 Slider (13)
F24 Slider (12)
F24 Slider (16)
F24 Slider (15)
F24 Slider (10)
previous arrow
next arrow

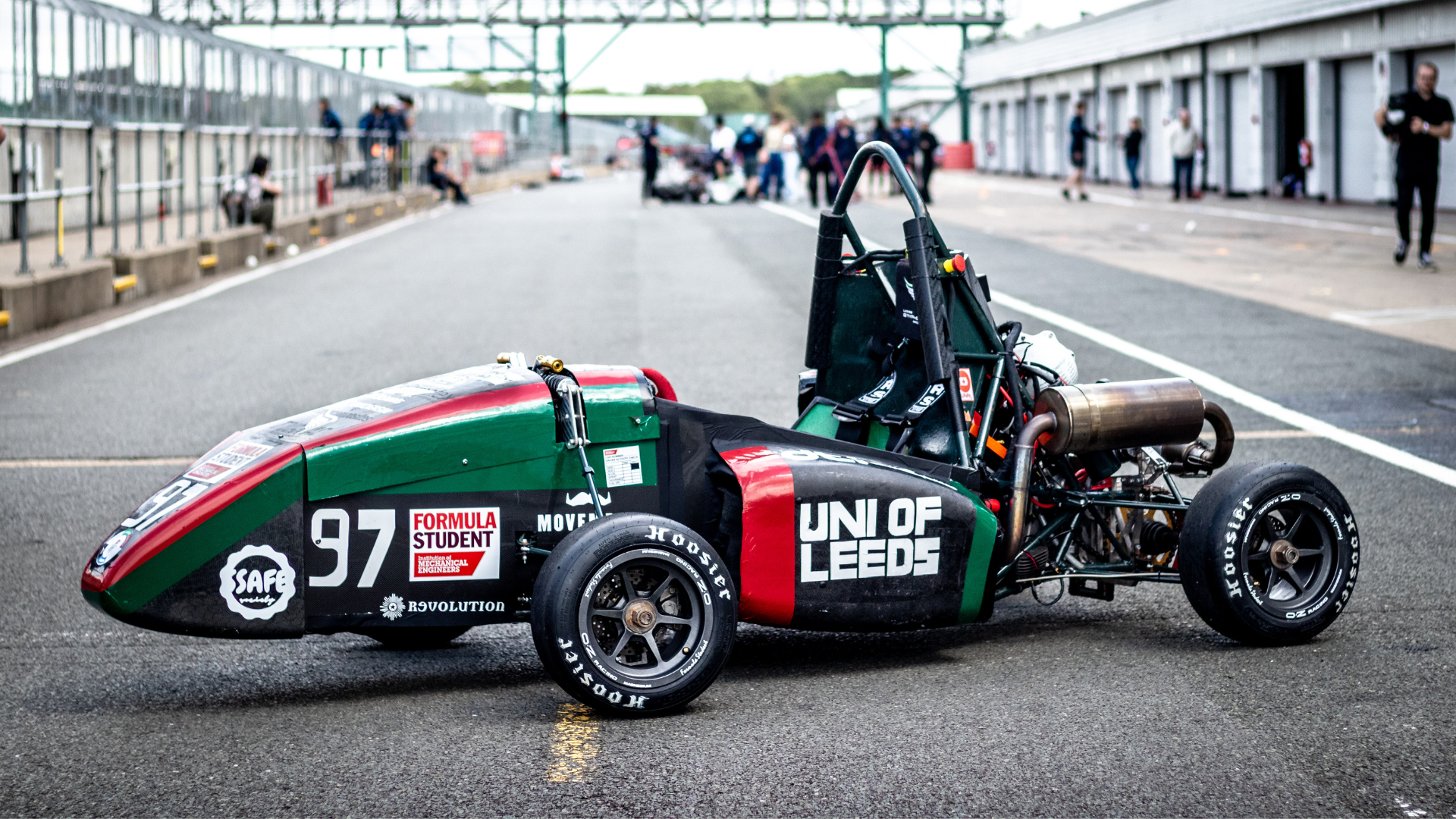

The F23 utilised a 2013 KTM EXC 590 Single cylinder engine producing a max of 42Nm of torque @7250 on a steel space frame. The car had a kerb weight of 209kg resulting in a fast accelerating car.
The car was entered into Silverstone Formula Student 2023 ending the year long cumulative effort of all the students that took part in Leeds Formula Student.

Car Specifications

Powertrain Internal Combustion Engine
Wheelbase 1565 mm
Kerb Weight 209 kg
Weight distribution 101.0/97
Suspension Double wishbone; Pushrod Actuation
Tyres Hoosier LCO 18X6-10
Wheels Magnesium 10 inch OZ wheel
Brakes AP Racing cylinders with balance bar
Chassis Steel space frame
Engine 2013 KTM EXC 590
Fuel system KTM Injector with MOTEC M84 ECU
Max Power 51 kw @8750
Max Torque 42 Nm @7250
Transmission KTM synchro Gearbox, Kliktronic electric shifter, 520 chain, 40 tooth final drive sprocket
Differential Drexler limited slip diff
